A compact enclosure family for compatible breakout-board layouts, built for customers who want a small indoor enclosure they can place almost anywhere power is available.
Approximate overall outside dimensions are shown in inches first, with millimeters in parentheses, including the installed lid and mounting tabs.
The Scout Product Family is our most compact enclosure option, designed for smaller automation ideas and installs where space is limited. It is a strong fit for DIY projects, compact control applications, and customers who want a clean enclosure they can use almost anywhere they have power.
Choose the version that matches how much of the hardware path you want handled before delivery. Loaded ESP32-based products include a pre-shipment diagnostic check and Quick Start firmware.
Unloaded is the bring-your-own-hardware path. It includes the printed enclosure, lid, brass threaded inserts, standard enclosure hardware, and matched insert layout for the selected family. Electronics and firmware are not included unless specifically stated at checkout.
Loaded is the pre-assembled path for customers who want the selected electronics path handled before shipment. Loaded ESP32-based products include a basic pre-shipment diagnostic check and WestTech Home Automation ESP32 Quick Start firmware to help with first setup before you upload your own project firmware.

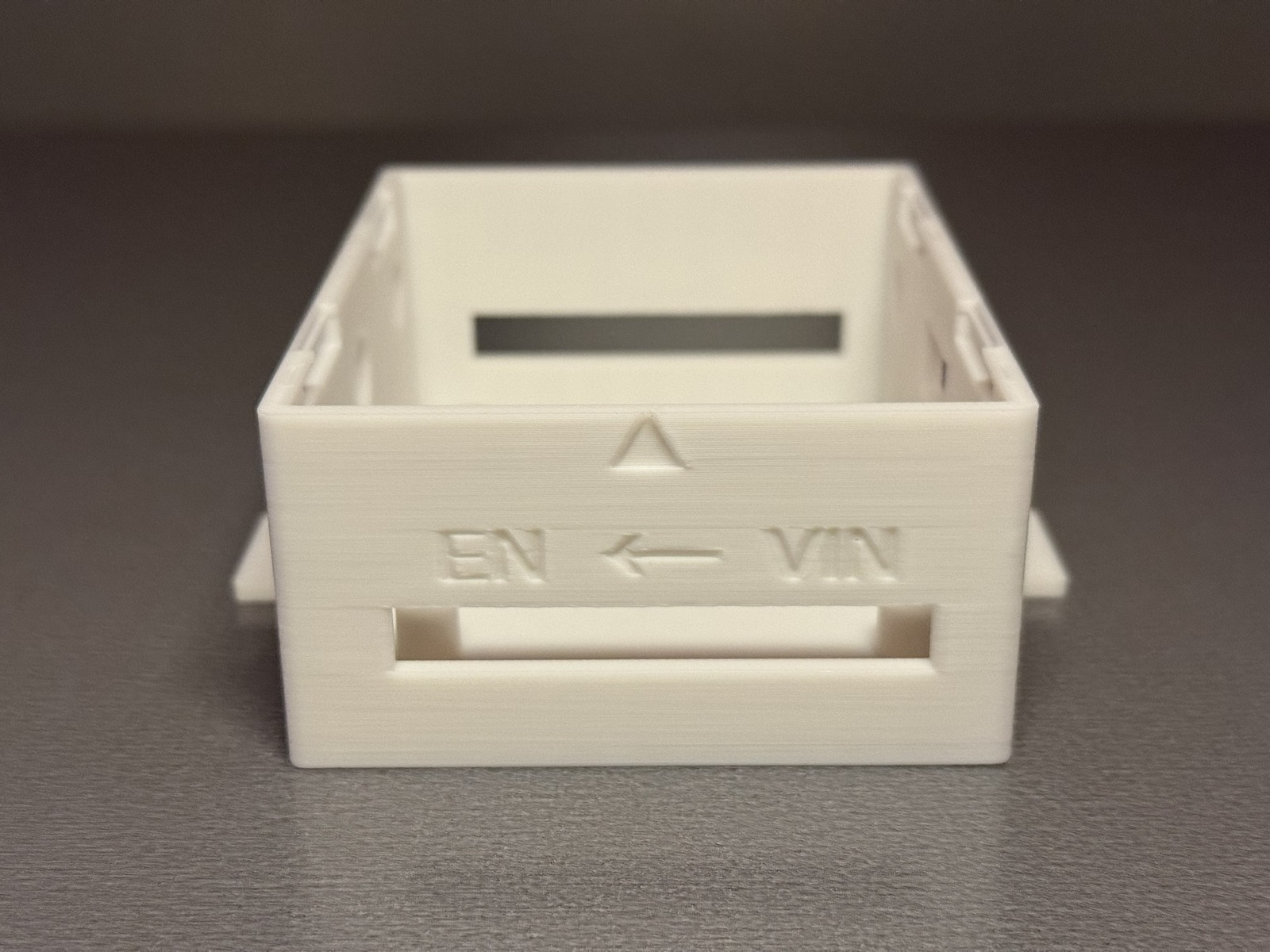

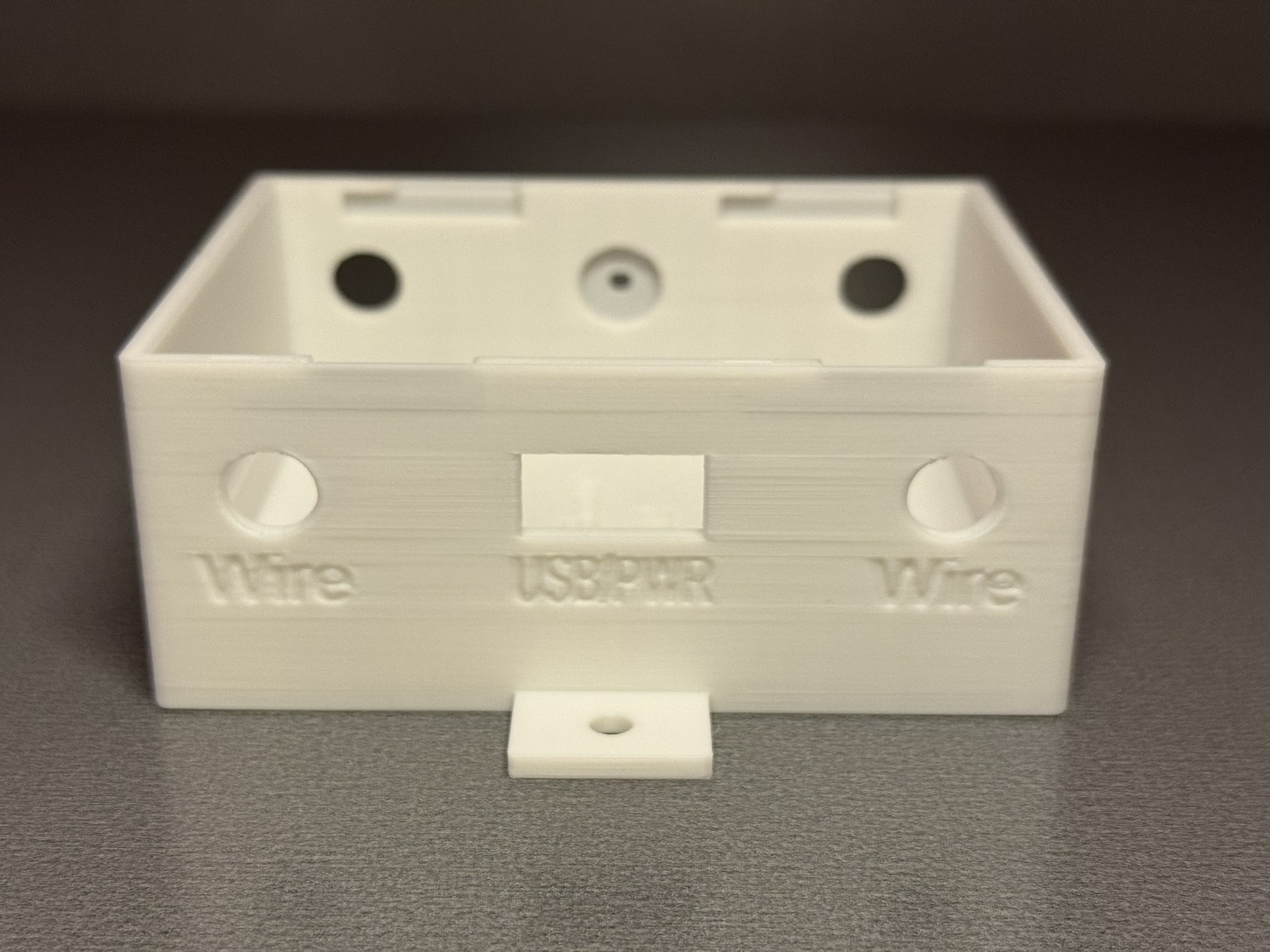

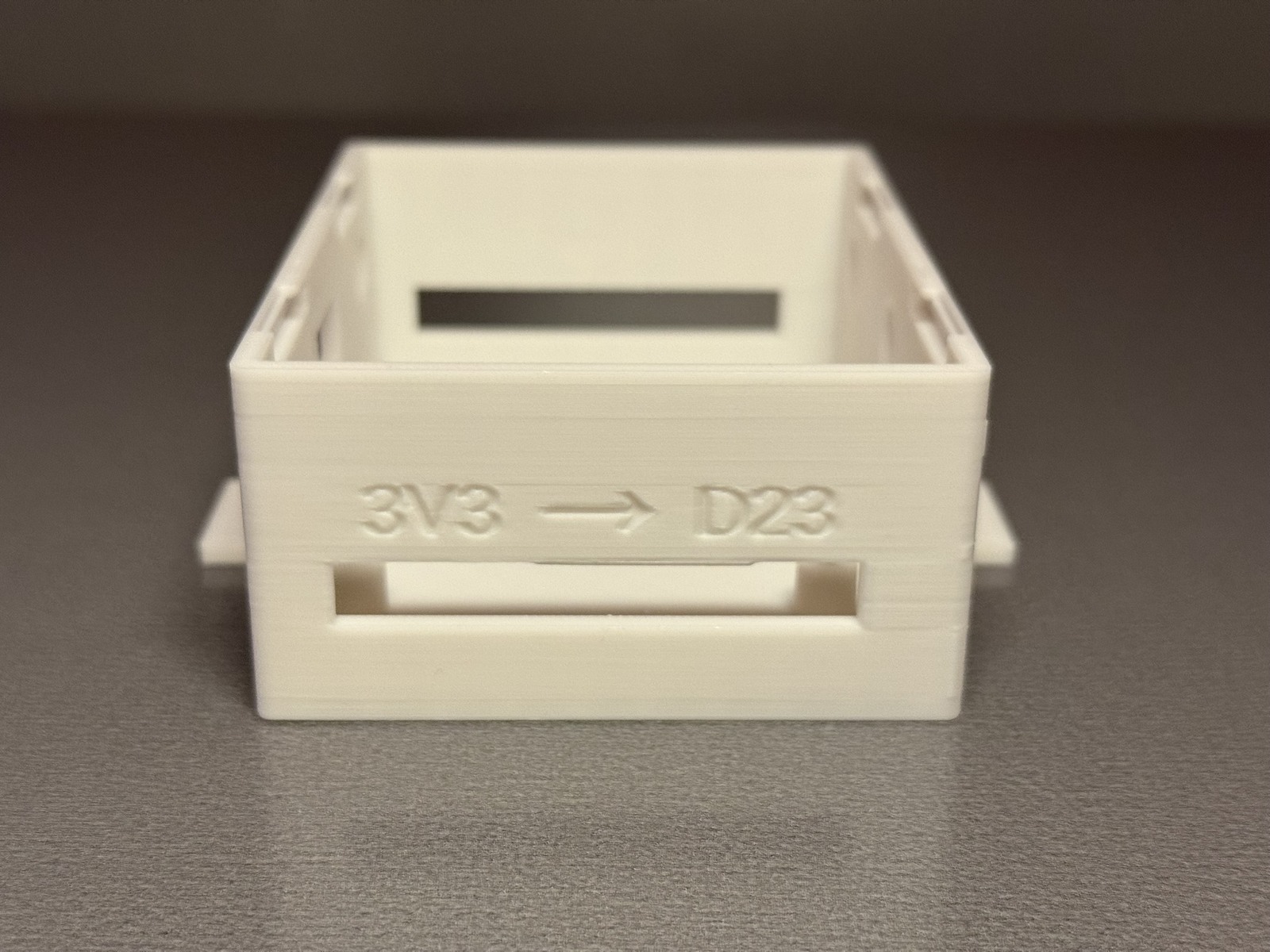

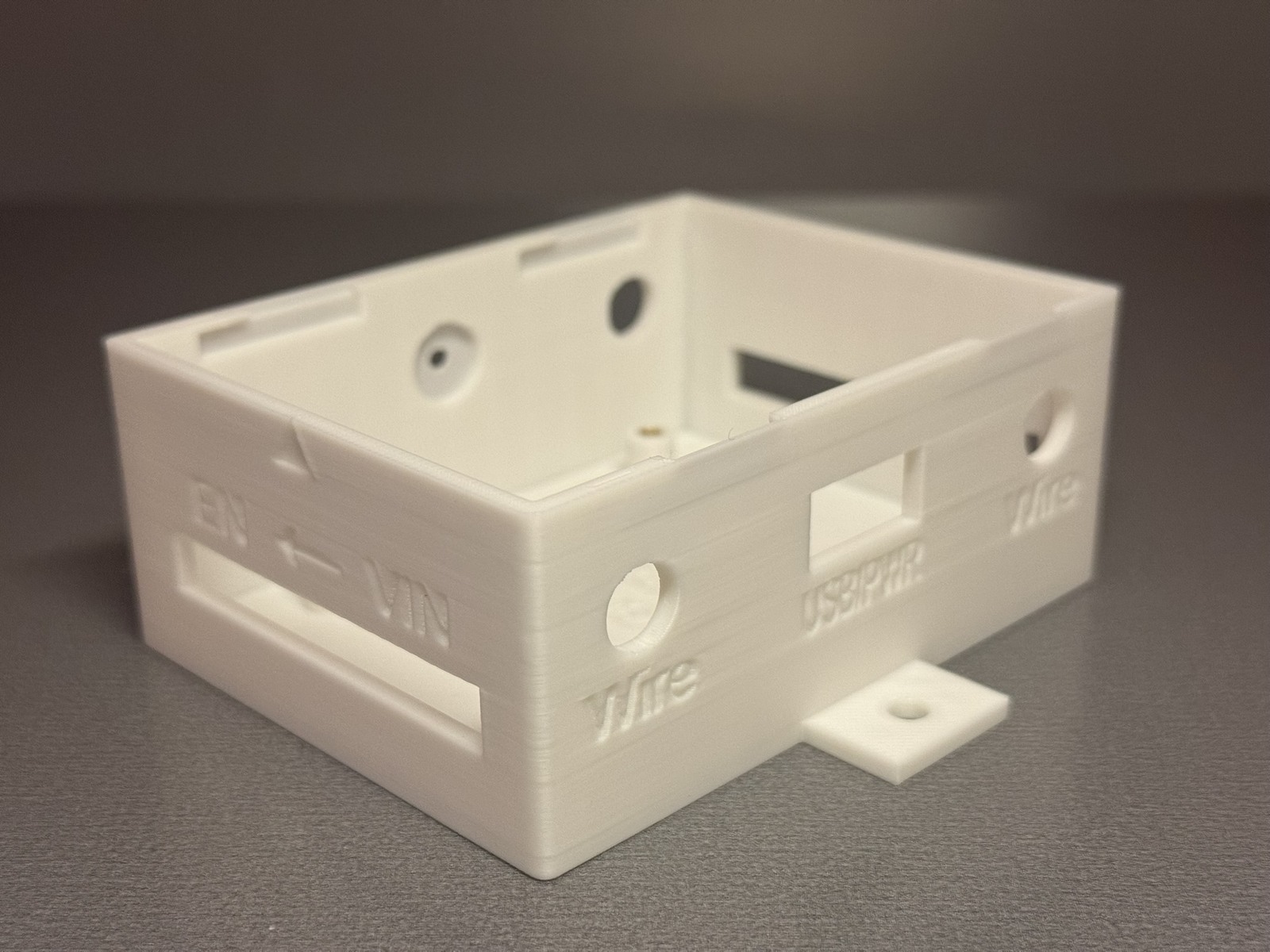

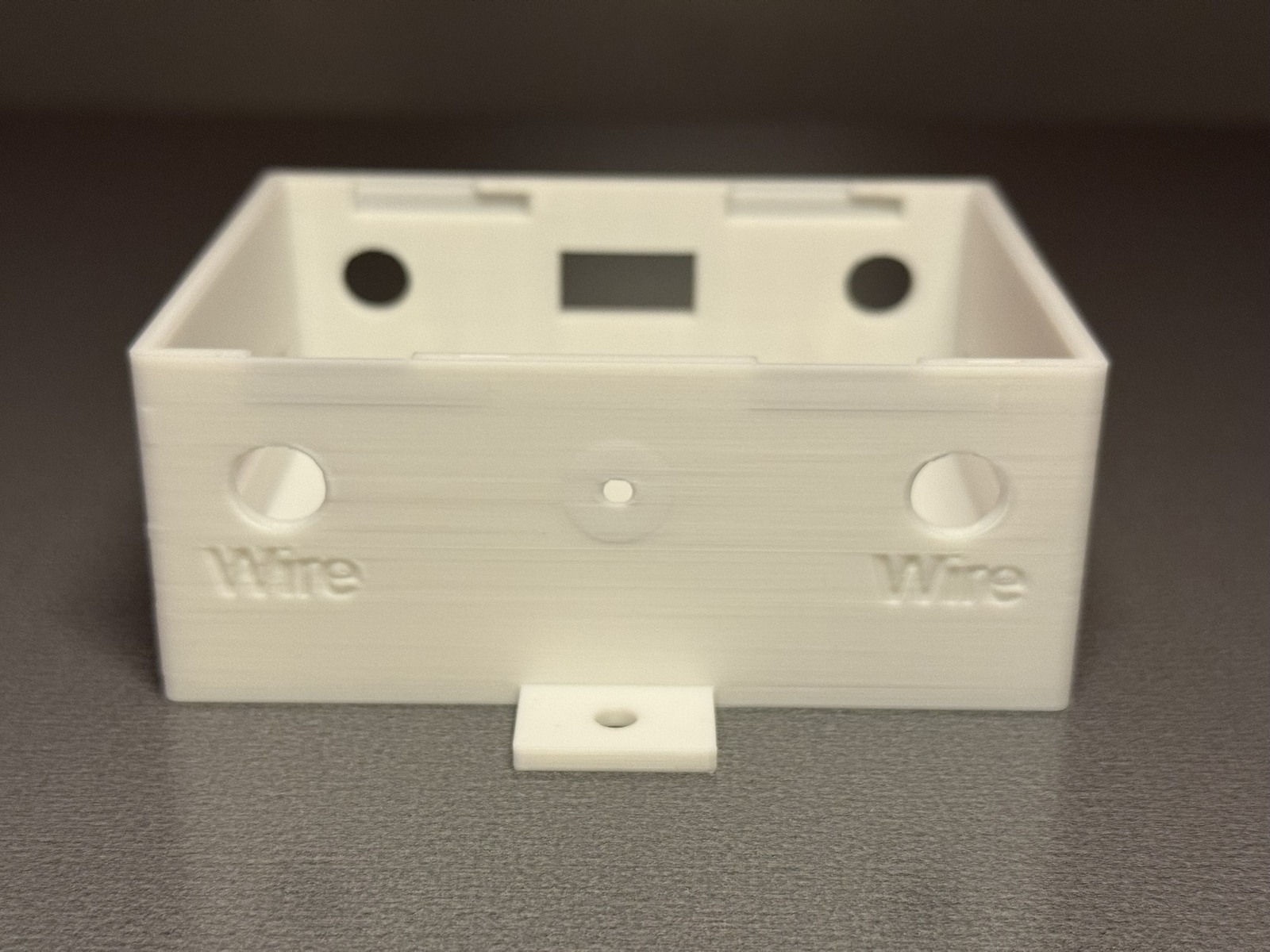

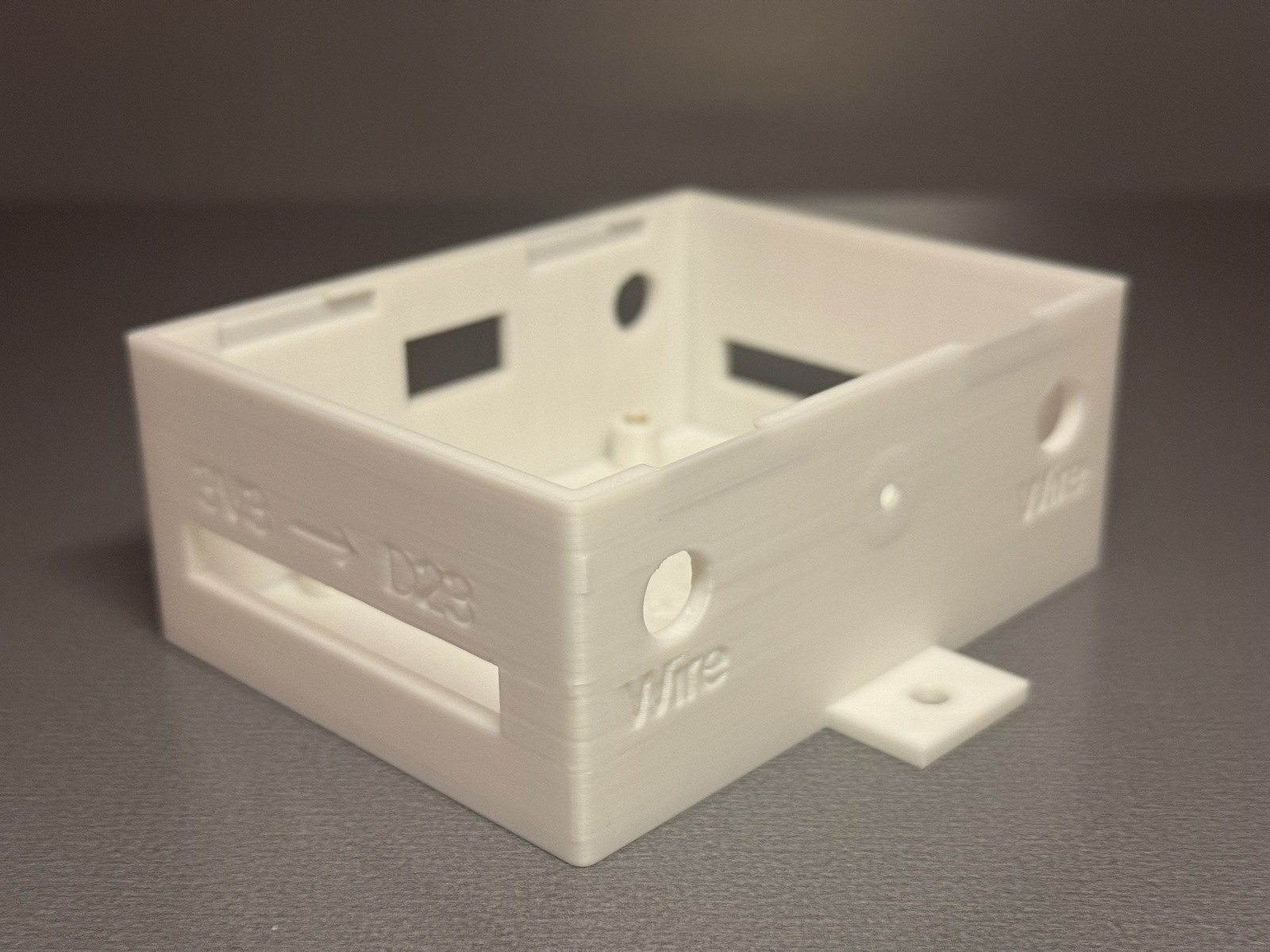

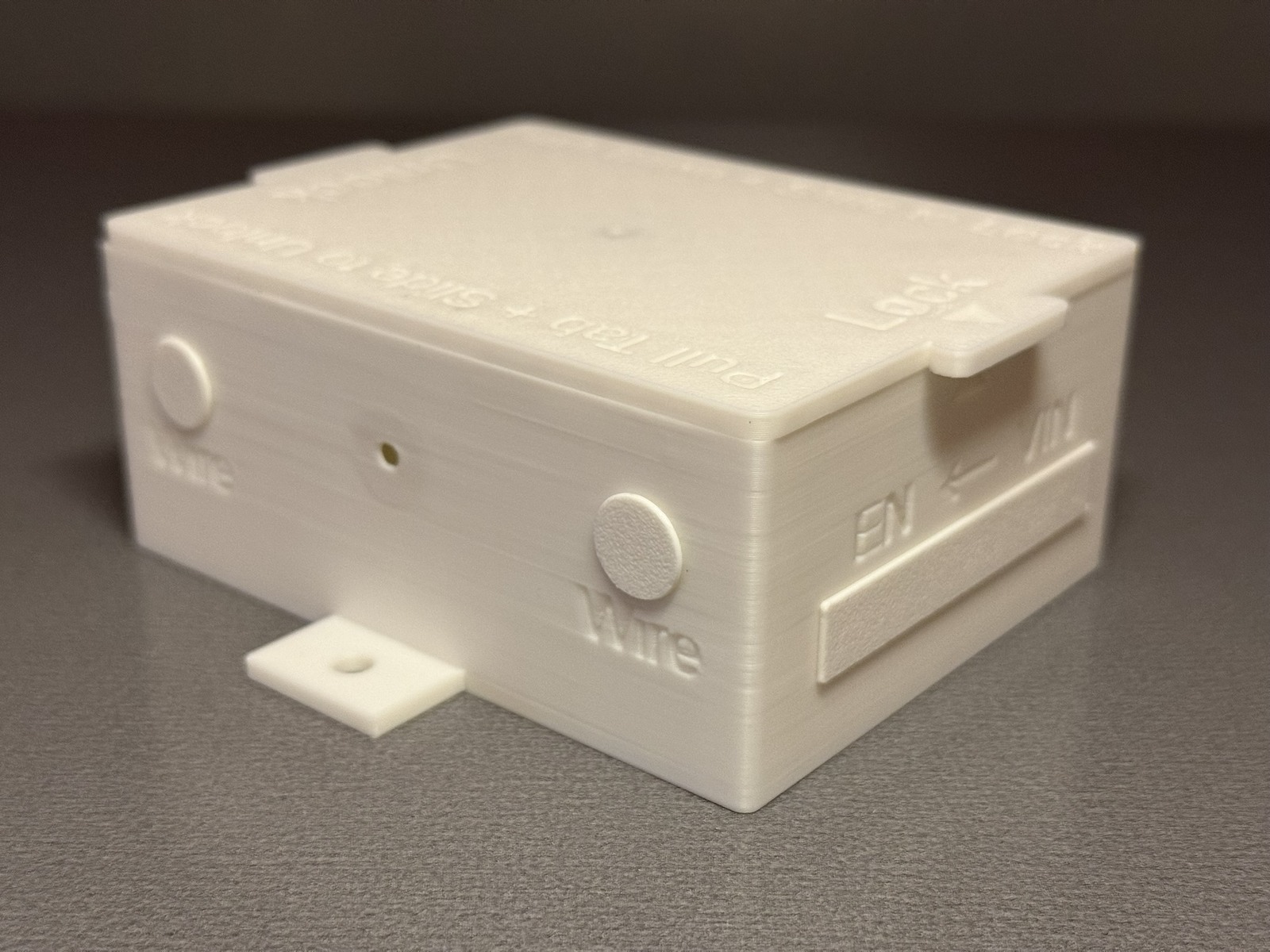

These views show the Scout enclosure family assembled, open, and from key side/detail angles.
Product pages stay focused on the family and available options. Shared material, HSI, board-layout, and hardware-reference details are kept in one place for easier review.
Review the printed material notes, indoor-use limits, and HSI-based serviceable mounting approach used across the product line.

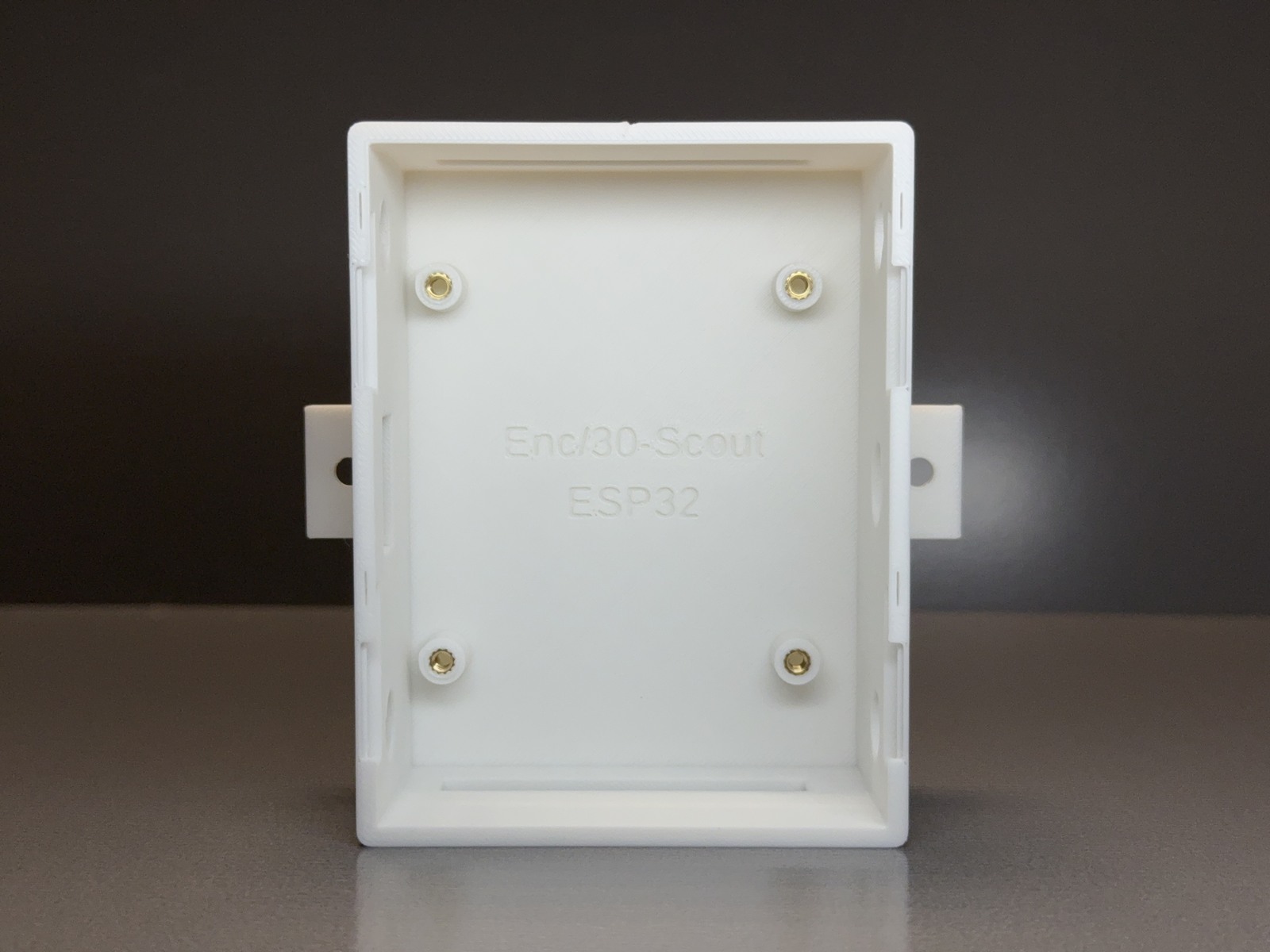

View the 30-pin and 38-pin board-layout examples, HSI photos, and important notes about reference hardware shown in photos.
Loaded ESP32-based products are prepared before shipment so customers have a clear first setup path instead of receiving a blank board.
Before a Loaded product ships, WestTech Home Automation performs a basic diagnostic check on the installed ESP32 path. This helps confirm the device powers on, boots correctly, and is ready for the customer setup process.
Loaded ESP32-based products ship with WestTech Home Automation ESP32 Quick Start firmware installed. It is designed to make the device easier to find, connect, and verify on your network before you upload your own project firmware.
Scout is for customers who want the smallest enclosure family in the lineup without giving up the clean physical finish that makes the product useful.
Best when space matters, wiring is manageable, and you want a small enclosure family you can use almost anywhere indoors as long as power is available.
Scout Unloaded is designed for customers who already know their hardware path. Scout Loaded is the step up when you want WestTechHA to pre-load the family with the appropriate hardware instead.
